CORTIZO WINDOWS ALUM.

Certified for the warm-temperate category, this system offers exceptional thermal insulation thanks to its special foams on the frame and sash. With a transmittance value Uw from just 0.66 W/m²K, it is an ideal solution for buildings with low energy consumption.

COR80

» Transmittance
Uw ≥ 0.66 (W/m2K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 46 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1950

» Wind resistance
(EN 12210) Class C5

Reference test 1.23 x 1.48 m / 2 sashes

» Glazing
Max. 65 mm
Min. 25 mm

» Opening possibilities

Inward opening
Side hung
Tilt & turn
Tilt & parallel
Tilt only

» Sightlines
Frame 80 mm
Sash 88 mm

» Profile thickness
1.6 mm

» Polyamide strip length
45 mm

» Maximum sash dimensions
Width (L) 1,00 mm
Height (H) 2,600 mm

» Maximum sash weight
160 kg

» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

Cortizo hidden sash

Elegant design with straight aestheticin which the sash is concealed behind the frame, thus maximising the glazed surface and the entry of light. Added to all of this is the great thermal and acoustic performance prompted by the 45 mm thermal break and a glazing capacity of up to 51 mm that allows the installation of triple glazing.

COR 80 Hidden Sash TB

» Glazing
Max. 51 mm
Min. 36 mm

» Opening possibilities

Inward opening

Side hung

Tilt & turn

Tilt only

Parallel Sliding

» Sightlines
Frame 80 mm
Sash 80 mm

» Profile thickness
Window 1.9 mm

» Polyamide strip length
45 mm

» Maximum sash dimensions

Standard Solution
Width (L) 1,300 mm
Height (H) 2,400 mm

HD Hinges (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm

» Maximum sash weight
160 kg

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

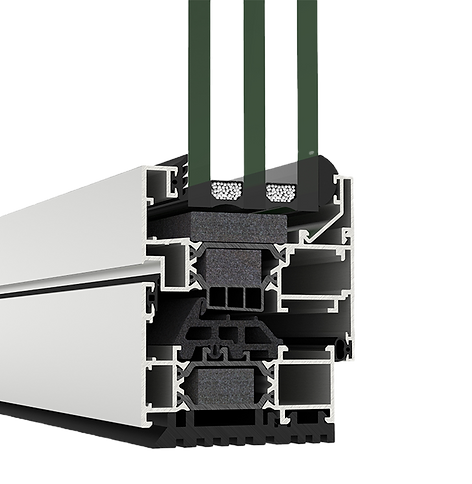

cor 70 aluminium

COR70 Industrial TB

This 70 mm frame depth hinged system offers great thermal and acoustic performance combined with very simple fabrication, which is why it has become one of the most demanded series for aluminium windows, doors and balconies.

Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Concealed handle

» Glazing
Max. 63 mm
Min. 6 mm

» Opening possibilities

Inward opening

Side hung

Tilt & turn

Parallel Sliding

Tily only

Outward opening
Side hung
Top hung
Pivoting on horizontal or vertical axis

» Sightlines
Frame 70 mm
Sash 78 mm

» Profile thickness
Cor 70 Indsutrial:
Window 1.5 mm
Door 1.7 mm
Cor 70 Industrial - Half-Hidden Sash

Window 1.9 mm

» Polyamide strip length
32 - 35 mm

» Maximum sash dimensions
Width (L) 1,500 mm
Height (H) 2,600 mm

» Maximum sash weight
160 kg

» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

» Transmittance
Cor 70 Industrial: Uw ≥ 0,76 (W/m²K)
Cor 70 Industrial - Half-Hidden Sash: Uw ≥ 0,86 (W/m²K)
Consult maximum weight and dimensions according to typologies

» Acoustic insulation
Rw up to 44 dB

» Air permeability
(EN 12207) Class 4

» Water tightness
(EN 12208) Class E1800

» Wind resistance
(EN 12210) Class C5

» Burgular resistance
Grade RC2 (WK2)

» Security test PAS24
Passed

» CSTB Laboratory DTA Certification
Avis technique - Ref. 6/17-2363

» ATG Certification
Ref. 3204

Reference test 1.23 x 1.48 m / 2 sashes
Security test: Reference test 1.1 x 2.4 m / 1 sash
Burgular test 1.47 x 2.52 m / 1 sash with EVO SECURITY hardware

cor 70 evolution

COR 70 Evolution TB

Hinged system with groove 16 destined for the industrial production of windows, doors and balconies. In order to reduce the manufacturing period, this new series offers the possibility of using pre-assembled gaskets, assembling cleats and a central floating mullion with a two piece hidden sash, which allows the glazing of double-sash windows on site. COR 70 Evolution is presented in a version of hidden or half-hidden sash with monoblock frames, in straight cut or perimetral, aiming at facilitating the on-site installation.

Possibilities
» Security hardware
» Concealed hingues
» Concealed handle

» Glazing
Hidden sash 36 mm
Half hidden sash 63 mm

» Opening possibilities

Inward Opening
Side hung
Tilt & turn
Tilt only

» Sightlines

Hidden sash
Frame 70 - 232 mm
Sash 72,5 - 80,5 mm

Half hidden sash
Frame 70 - 232 mm
Sash 80,5 - 88,5 mm

» Maximum Sash Dimensions

Hidden sash
Width (L) 1300 mm
Height (H) 2400 mm

Half hidden sash
Width (L) 1500 mm
Height (H) 2600 mm

» Maximum Sash Weight
150 Kg

Consult maximum weight and dimensions
according to typologies

» Finishes
Possibility of bicolour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

Casement TB

Thermally broken window that allows for both side hung and top hung outward openings. This solution, with a thermal break zone of 32 mm and a transmittance Uw from 1.0 W/ m²K, has the British security certification PAS 24, being especially suitable for this market.

Possibilities
» Security hardware
» Concealed hinges

» Opening possibilities

Outward opening
Side hung
Top hung

» Sightlines
Frame 70 mm
Sash 70 mm

» Profile thickness
Window 1.6 mm

» Polyamide strip length
32 mm

» Maximum sash dimensions

Slim sash (Side hung)
Width (L) 950 mm
Height (H) 1,300 mm

Slim sash (Top hung)
Width (L) 1,200 mm
Height (H) 1,300 mm

Heavy duty sash (Side hung)
Width (L) 750 mm
Height (H) 1,750 mm

Heavy duty sash (Top hung)
Width (L) 1,800 mm
Height (H) 1,800 mm

» Maximum sash weight
Side hung Slim sash: 35 kg
Top hung Slim sash: 50 kg
Side Hung Heavy duty sash: 42 kg
Top Hung Heavy duty sash: 100 kg

Consult maximum weight and dimensions according to typologies.

» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
